The machine

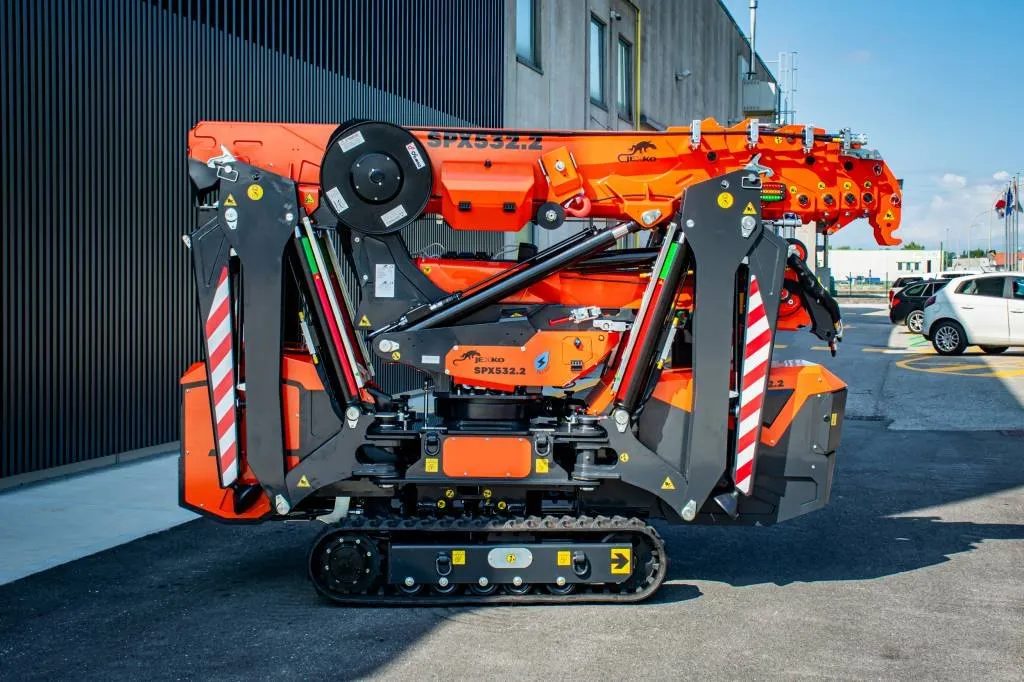

A diesel bi-energy mini crawler crane with a telescopic boom, hydraulic jib and radio remote, and it still fits through an 800 mm doorway.
Specification
All figures are from Jekko’s SPX532.2 Diesel Bi-Energy datasheet (V26.07). Capacity depends on radius and configuration. We check every lift against the load chart.
| Max lifting capacity | 3,200 kg |
|---|---|
| Max tip height · main boom | 11.8 m |
| Max tip height · hydraulic jib | 17.0 m |
| Max radius · main boom | 9.3 m |
| Max radius · hydraulic jib | 14.8 m |
| Turret rotation | 360° |
| Winch rope | 80 m |
|---|---|
| Winch capacity · single fall | 800 kg |
| Winch capacity · 4 falls | 3,200 kg |
| Hydraulic jib SWL | 1,000 kg |
| Jib articulation | +16° / −80° |
| Jib length | up to 5.1 m |
| Length | 3,140 mm |
|---|---|
| Width (tracks closed) | 770 mm |
| Height | 1,990 mm |
| Transport weight | 2,657 kg |
| Single doorway | 800 mm clear opening |
| Pick & carry | up to 400 kg |
| Diesel engine | 18.5 kW Kubota |
|---|---|
| Engine management | Variable speed (low noise, low fuel) |
| Electric power pack | 100% electric, zero-emission operation |
| Controls | Radio remote + 7″ IP66 touch display |
| Safety | Full LMI, anti-crash, live stability area |
| Outriggers | 9 angle steps, 2 extensions, self-levelling |
01 / Power
The CDH is Jekko’s bi-energy build. An 18.5 kW Kubota diesel with variable speed engine management runs outdoors quietly and frugally, ramping up only when the crane needs it.
Indoors, the on-board electric power pack takes over for 100% electric, emission-free, near-silent operation, so the SPX532.2 can work in atriums, warehouses and occupied buildings.
02 / Control
Every crane function runs from a radio remote, so our operator can stand where they have the best view of the lift: at the drop zone, on a scaffold, or next to your fixer.
A 7″ IP66 heavy-duty touch display shows the live load chart and stability area, with an on-board assistant plus self-diagnostics for fast troubleshooting.
03 / Configurations
Fast hook/winch switching and 80 m of winch rope: 800 kg on a single fall, the full 3,200 kg on four falls.

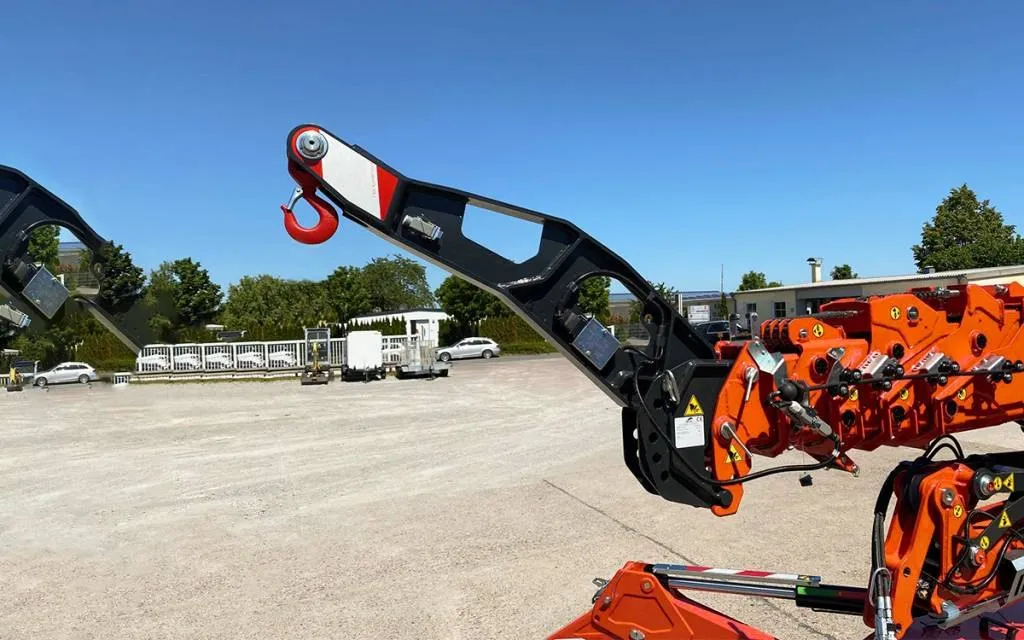

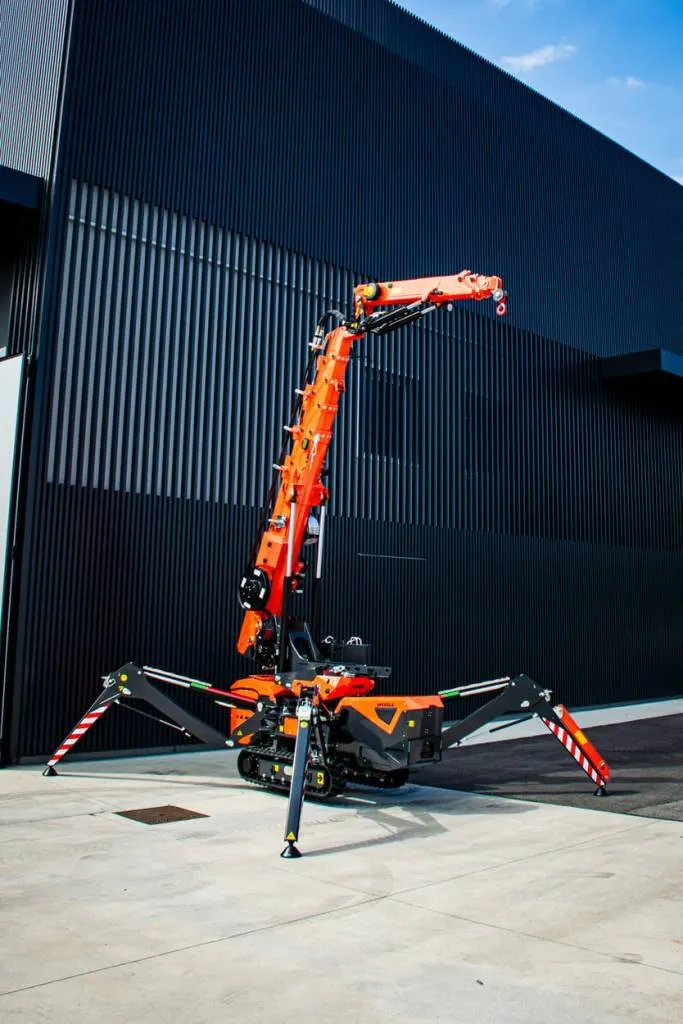

The hydraulic jib self-installs, articulates from +16° to −80° and extends up to 5.1 m, taking tip height to 17.0 m and radius to 14.8 m. It’s ideal for reaching over and down into tight spots.
04 / Footprint

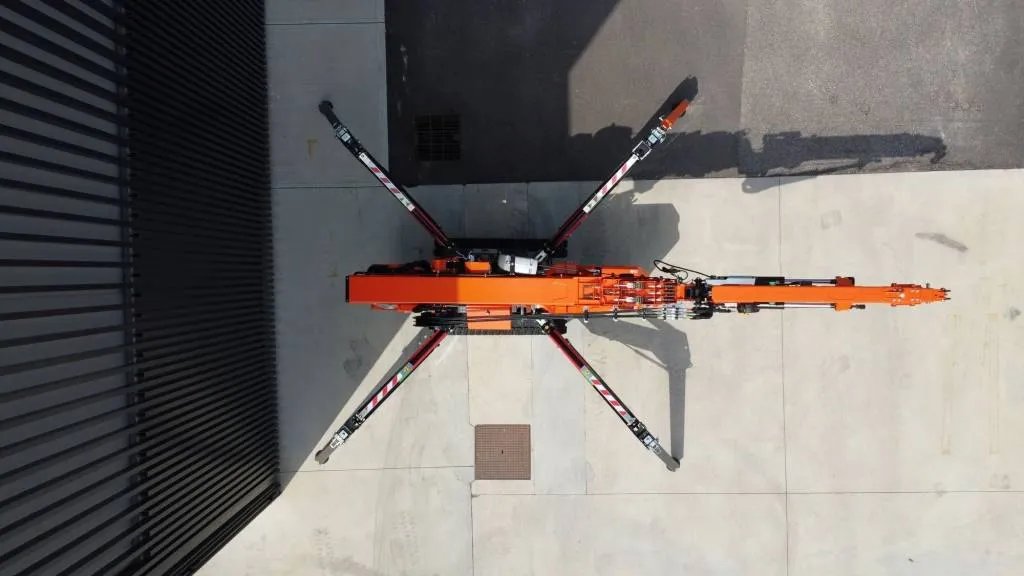

Four outriggers, each with nine angle positions between 0° and 90° and two extensions, set independently to dodge walls, kerbs and drains.

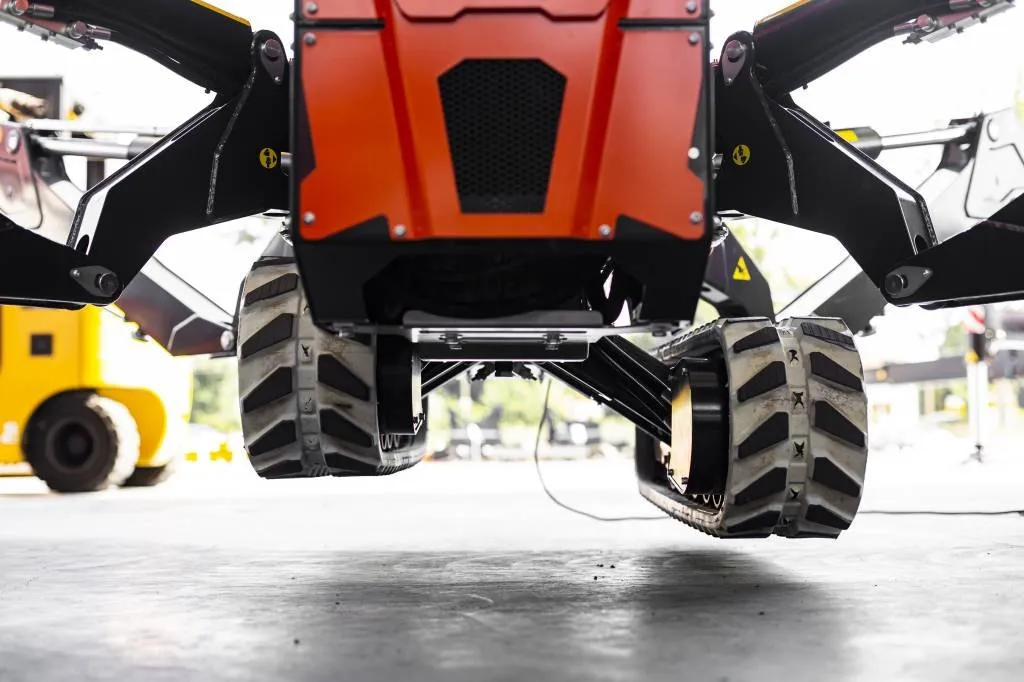

The crane levels itself on its legs, and it can lift in any outrigger configuration, not just fully spread, with the live load chart adjusting to suit.

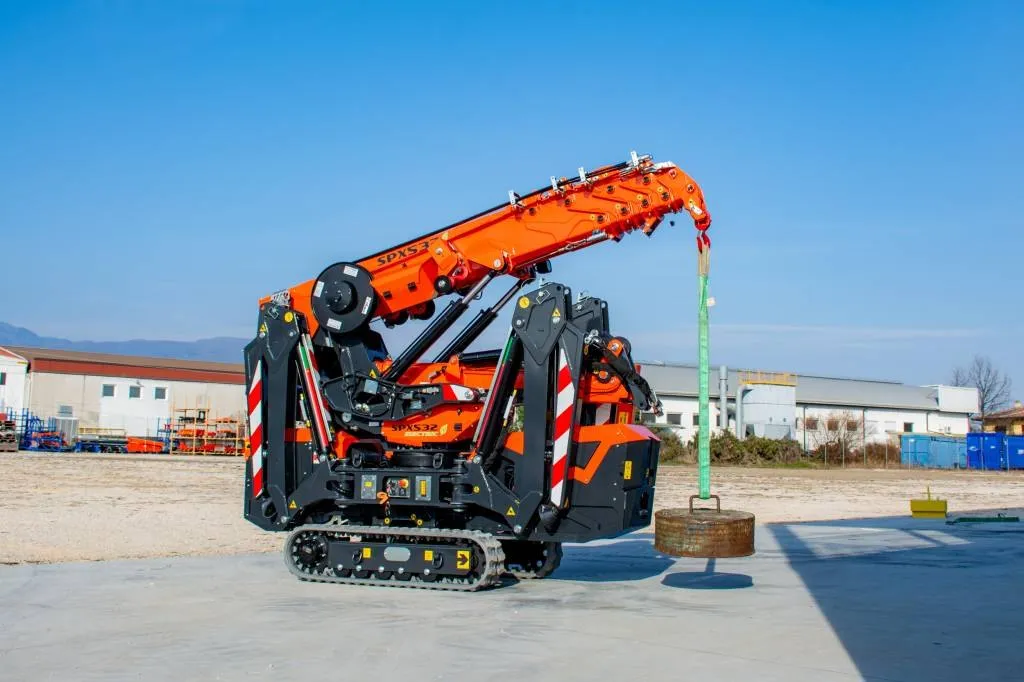

05 / Pick & carry
For repetitive placements the SPX532.2 can pick up to 400 kg and travel with it on its tracks, turret rotating a full 360°.
The extendable crawler widens its track for steadier driving across site.
06 / Safety
Dynamic load sway control, automatic speed adjustment and automatic movement limitation keep every lift smooth and inside the chart.
Full load moment indication (LMI) and an anti-crash system are built in, with feedback on the display, and J-Link by TrackUnit for remote monitoring and diagnostics.
Tools
Jekko tools connect straight to the boom head. Tell us what you’re lifting and we’ll arrange the right one for your job.
1,000 kg SWL
Reach over and down into tight spots.
800 kg SWL

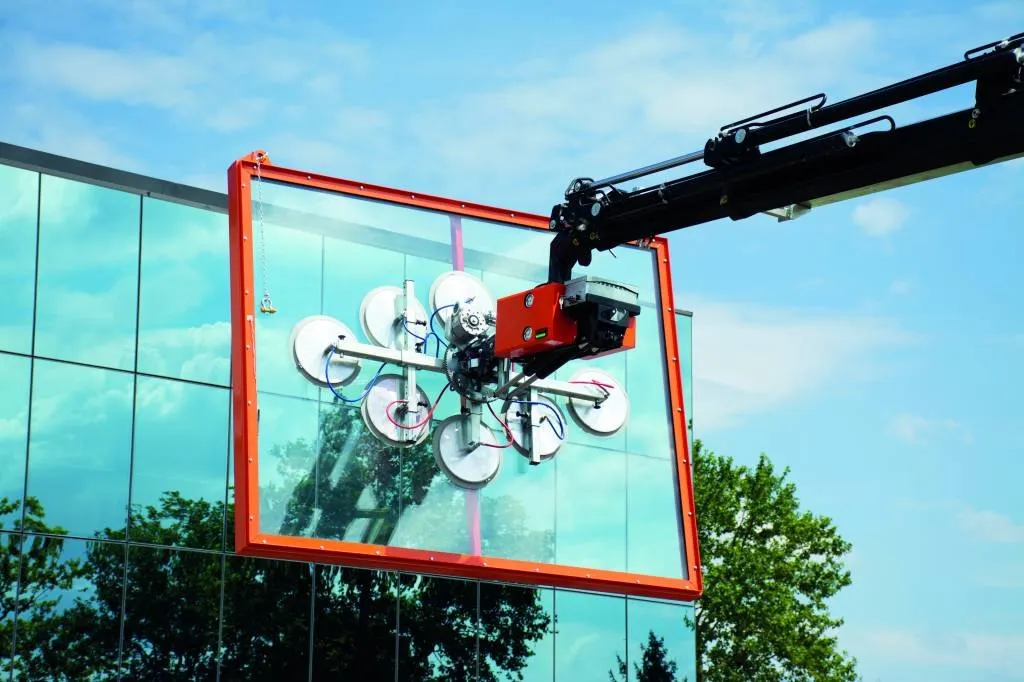

For glazing units, stone and cladding panels.

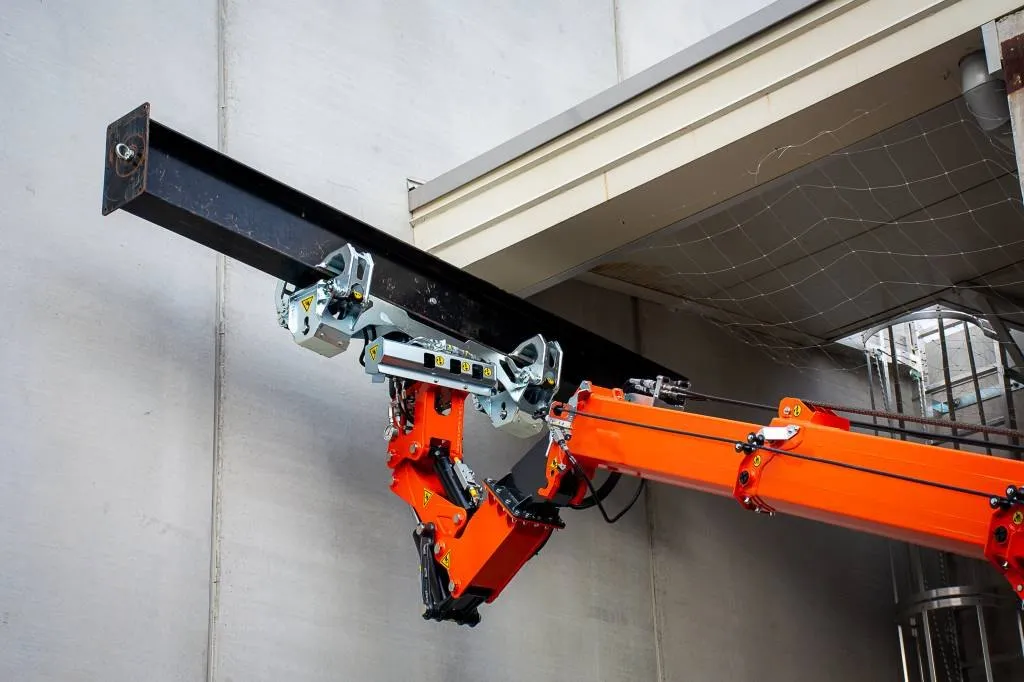

500 kg SWL
Holds steel and pipe level and rotates it into position.
1,200 kg SWL
Extra reach for lifting under canopies.

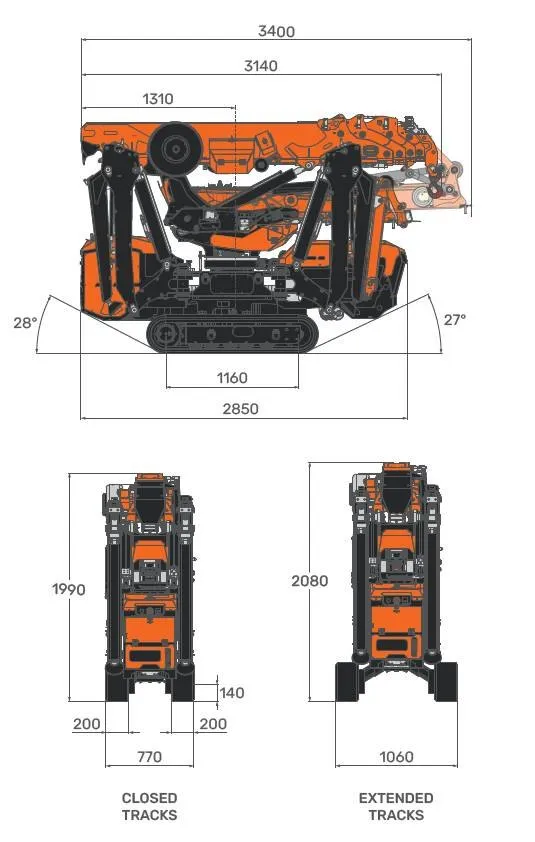

Drawings

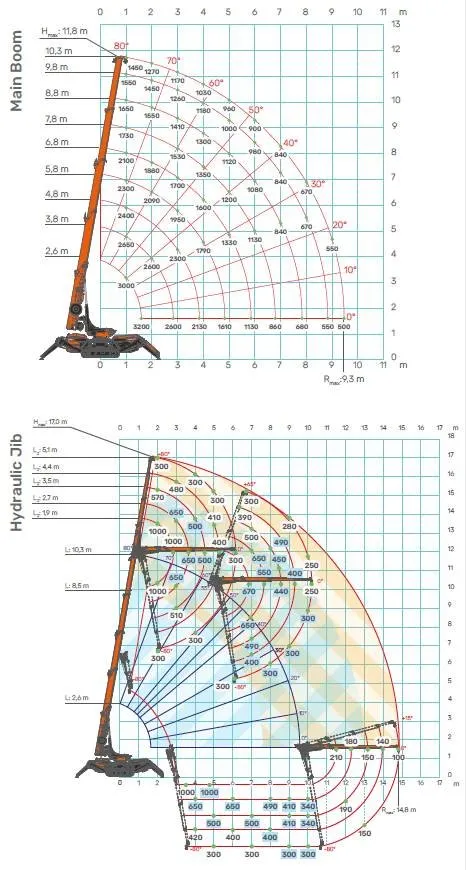

For reference only. Send us your load weight and radius and we’ll confirm it against the full chart for your set-up.
Jekko’s official SPX532.2 Diesel Bi-Energy brochure, with every chart and dimension.
Download PDF
Next step
Send us the weight, the distance and a photo of the access. We’ll tell you straight whether it’ll go.
